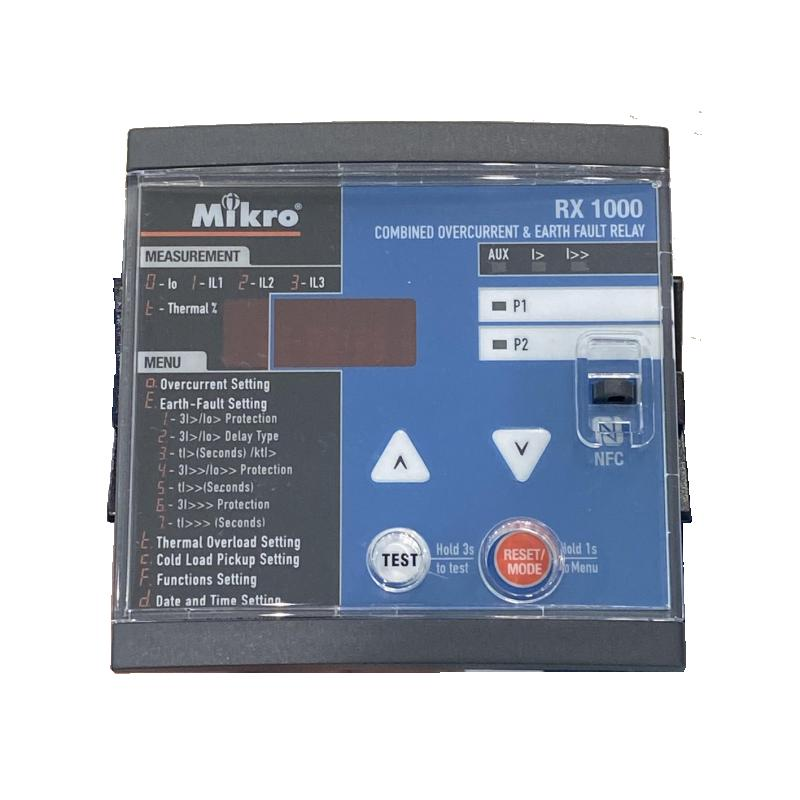

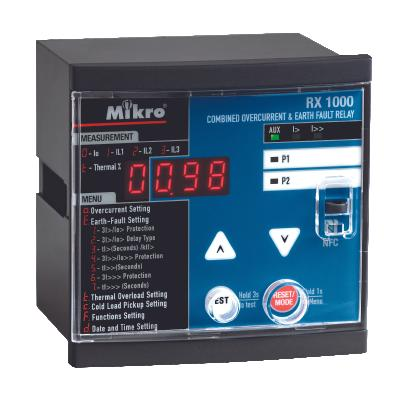

The RX1000 is a state-of-the-art combined overcurrent and earth fault protection relay designed for safeguarding electrical systems against faults and abnormal conditions. It ensures the reliable and efficient operation of electrical networks by promptly detecting and isolating fault conditions. Key Features: Comprehensive Protection Functions: 1. Overcurrent Protection: Three-phase, three-stage setting with selectable time delay types (Definite Time (DT), Inverse Definite Minimum Time (IDMT)). 2. Earth Fault Protection: Two-stage setting with adjustable time delays and threshold values. 3. Thermal Overload Protection: Provides protection against overheating, ensuring equipment longevity. 4. Cold Load Pickup and Circuit Breaker Failure Protection: Ensures system stability during load fluctuations and breaker operations. Advanced Monitoring and Diagnostics: 1. Real-time System Monitoring: Continuous tracking of system conditions to detect anomalies promptly. 2. Built-in Self-Test and Soft Recovery Watchdog: Enhances system reliability by performing regular diagnostics and recovery processes. 3. Internal Relay Failure (IRF) Alarm: Alerts operators to system abnormalities, enabling quick intervention. User-Friendly Interface and Programmability: 1. NFC Communication: Allows for easy reading and setting of parameters via MikroNFC app (compatible with Android and iOS). 2. Programmable Settings: Customizable protection thresholds and time delays to suit specific operational requirements. 3. Time-Stamped Event Recording: Logs up to 120 events, including power failures and setting changes, for comprehensive fault analysis. High Reliability and Standards Compliance: 1. IEC 60255 Compliant: Adheres to international standards for electrical relays. 2. Environmental Tolerance: Operates reliably in a wide temperature range (-10°C to 55°C) and high humidity conditions (5% to 95% non-condensing). 3. Durable Output Contacts: Rated for high voltage (250VAC) and capable of enduring extensive electrical (10^5 operations) and mechanical (5 x 10^6 operations) cycles. Seamless Integration: 1. Flexible Installation: Designed for panel mounting with IP54 protection at the panel and IP20 at the body. 2. Programmable LEDs and Contact Outputs: Allows for easy integration with existing alarm and control systems. Benefits: 1. Enhanced System Safety: Minimizes damages to equipment and reduces downtime by quickly isolating faults. 2. Operational Flexibility: Customizable settings provide tailored protection solutions for various applications. 3. Ease of Use: Simplified interface and programming reduces the learning curve and operational errors. 4. Integration and Compatibility: Advanced communication features ensure compatibility with existing and future systems. Target Audience: The RX1000 is ideal for utility companies, industrial plants, and large commercial facilities seeking robust protection for their electrical system. It caters to engineers and technical personnel responsible for maintaining the reliability and safety of electrical infrastructure.
Allows for easy reading and settings of parameters via MikroNFC app (compatible with Android and iOS)
Continuous tracking of system conditions to detect anomalies promptly
Adheres to international standards for electrical relays
Can operate in a wide temperature range (-10°C to 55°C) and high humidity conditions (5% to 95% non-condensing)
Enhances system reliability by performing regular diagnostics and recovery processes.
